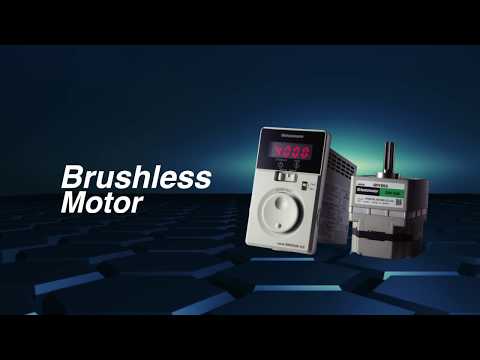

BMU & BLE2 Series – AC-powered Brushless DC Motors with a Shared Motor Lineup
Both series use the same compact motor lineup (30–400 W, 80–4,000 rpm) with spur, flat, or planetary gearheads. H1 food-grade grease is available for spur gear types (30–120 W only). Motors are available with IP66 or IP67 protection, making them suitable for demanding environments. The key difference lies in the driver functionality.
BMU Series
Simple speed control via rotary push-dial on the driver, four fixed speeds programmable, with display for speed and load factor, and built-in protections. Plug-type motor cable enables quick, tool-free setup – ideal for straightforward applications.
BLE2 Series
Enhanced features: up to 16 programmable speeds, multiple control options (analog voltage, external potentiometer, digital inputs), torque limiting, and load-holding for vertical axes (with optional brake). Includes digital display on the driver.
The stainless steel version of the BLE2 series features 200 W output power, an integrated hollow-shaft flat gearbox, and protection ratings of IP67/IP69K – ensuring maximum reliability even under the toughest conditions.
Shared Features:
Stable speed control under load changes (± 0.2 %)
Compact, durable, low-maintenance motors
Easy system integration via digital I/Os
Available with IP66 or IP67 rating and optional H1 grease (spur gear, 30–120 W)
Ideal for precise, compact drive systems in packaging, conveying, food-grade applications and more.
