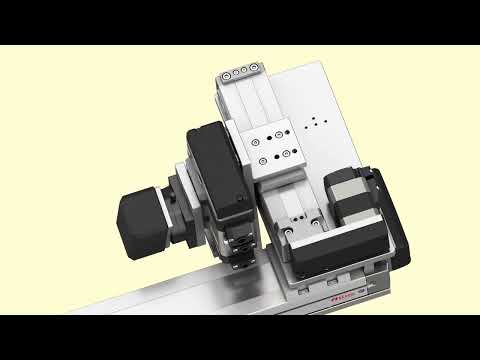

EZS Series – Electric Linear Slides with AZ Hybrid Stepper Motor
The EZS Series offers compact, high-precision electric linear slides with integrated ball screw and guide rails. With a battery-free absolute encoder from the AZ Series, the unit enables reliable positioning without homing – ideal for clean, efficient automation.
Key Specs
Sizes:
• EZSM3: 54 × 50 mm
• EZSM4: 74 × 50 mm
• EZSM6: 74 × 66.5 mm
• Motor Orientation: Straight or Reversed (Left/Right)
• Stroke Lengths: 50 – 850 mm (in 50 mm increments)
• Lead Pitch: 6 mm or 12 mm
• Repeatability: ±0.02 mm
• Max Speed: Up to 800 mm/s (depending on model)
• Permissible Moment (EZSM6, static): up to 340 Nm
• Load Capacity: Up to 30 kg vertically / 60 kg horizontally (depending on model)
Key Features
• Built-in Absolute Sensor (AZ Series): No battery, no homing required
• Dust-Proof Stainless Steel Design: With smooth-running rollers
• Low Particle Generation: Cleanroom compatible for some selected versions (ISO Class 3 achievable)
• Space-Saving: Reversed motor up to 136 mm shorter than straight type
• Electromagnetic Brake (optional): Holds load in vertical applications
• Flexible Communication: Supports EtherCAT, EtherNet/IP, PROFINET, Modbus RTU
