OVR3 SCARA Series – Flat and Flexible 3-Axis Transport Robots
The OVR3 Series includes compact 3-axis SCARA robots, perfect for applications in confined spaces. Models with full 360° range of motion for axis 1 and extended reach open up even more flexible application possibilities.
Variants in Detail

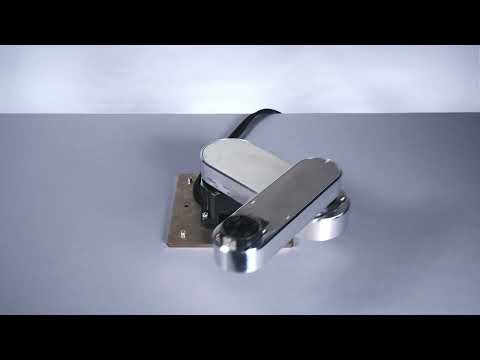

1. Standard SCARA
Low-profile design, approx. 140 mm height, weight around 7.6 kg
Reach up to 410 mm, payload up to 3 kg
Repeatability: ±0.03 mm
Drives all axes using AZ hybrid steppers with built-in, battery-free absolute encoder
2. Full 360° SCARA
Axis 1: unrestricted rotation, Axis 2: ±170°
Greater motion flexibility for complex paths in tight environments
Versions: 460 mm reach with 10 kg payload, or 700 mm reach with 3 kg payload
General dust protection (not IP-rated)
Common Strengths
All OVR3 SCARA variants share these benefits:
Compact footprint with high precision
Simple programming via MRC01 controller and free MRC Studio software
Ideal for pick & place, assembly, inspection, and tight-cell automation
